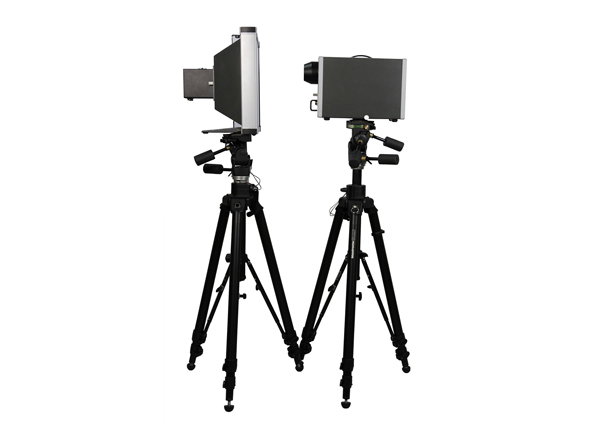

NORKA is a unique portable X-ray inspection system with a minifocus and microfocus constant potential X-ray sources. The voltage can be adjusted from 20 to 160kV. This allows to inspect objects made from different materials with different density and thick- ness (20-70kV is the optimal voltage for checking mail and thin objects, while 100-160kV works best for baggage and thick objects). One of the NORKA’s advantages is its ability to inspect areas of an object
in high detail using geometric magnification (up to 40 times if used with the RE-150MN X-ray unit).
Unlike 1 mm spot used in conventional portable X- ray systems, this X-ray unit has a 30-micron focal spot. The resolution power attains an unprecedented
value 25 microns of copper wire equivalent. Moreover, the distance between the object and the X-ray source can be minimal, down to a few centimeters or even a few millimeters when using geometric magnification.

Identification OF ORGANIC AND NON-ORGANIC OBJECTS
The images are shown on the display of the control unit in a positive/negative form, pseudo colors, with enhanced contrast or in dual energy mode. Zooming  in on any of the nine areas of the screen allows better identification. Obtained images can be stored in the memory of the control unit for further investigation
or reference (up to 30,000 images). Stored images can also be edited and provided with additional text, graph- ics and voice information.
If necessary, these images can be copied from the directory of a ‘’BU-4’’ control unit to a USB flash drive. Universal power supply (85 - 240 VAC 50/60Hz) ensures easy operation anywhere in the world. This is the only system on the market that works at the tem- peratures ranging from -20°Ð¡ to +50°Ð¡ with humidity level of up to 90%. The NORKA X-ray system is deliv- ered in two handy carrying bags or in a single case.

NORKA has a wide range of applications in customs services, law enforcement divisions, airport security and other areas.

The NORKA X-ray system is easy to use, reliable and completely safe to operate. It provides excellent detecting capability with no harmful effects to its users or service personnel.

 APPLICATIONS:

• Inspection of mail, parcels and small articles.
• Detection of Weapons, Bombs and Explosive devices and Narcotics
• Searching for concealed eavesdropping devices in furniture,
• In the equipment, walls, door/window frames, etc.
• Non-destructive testing and evaluation of machinery, aircraft, vehicles.
• ‘’BU-4’’ control unit is a HP Stream X360 with a 11.6’’ LED with touch screen
  (can be equipped with any notebook computer)
• ‘’SKB-3D’’ digital camera unit (1280x1024,  16-bit)
• Interchangeable X-ray converter viewing area: 300x400 mm (standard) with converter unit support. Interchangeable converters (190x250 and 410x550 mm) are available on request
• Specially designed ‘’RE-160’’ and ‘’RE- 120’’ minifocus X-ray digital generators, ‘’RE-150MN’’ microfocus and any X-ray unit from the RAP series (constant potential with the voltage up to 300kV)
• Focusing device (optional for microfocus X-ray units) Set of connecting cables
• PC mouse & keyboard (optional)
• USB ash drive (optional)
• Rechargeable battery & charging device Set of transport bags or transport case
